This is the second generation Prism version of the "RH-55 Guide Light" that originally came on panheads and ironheads. Overall dimensions are 3.375" x 2.5" x 1" thick, 30% smaller than the original. It's equipped with a dual function LED cluster that acts as both a brake light and running light.

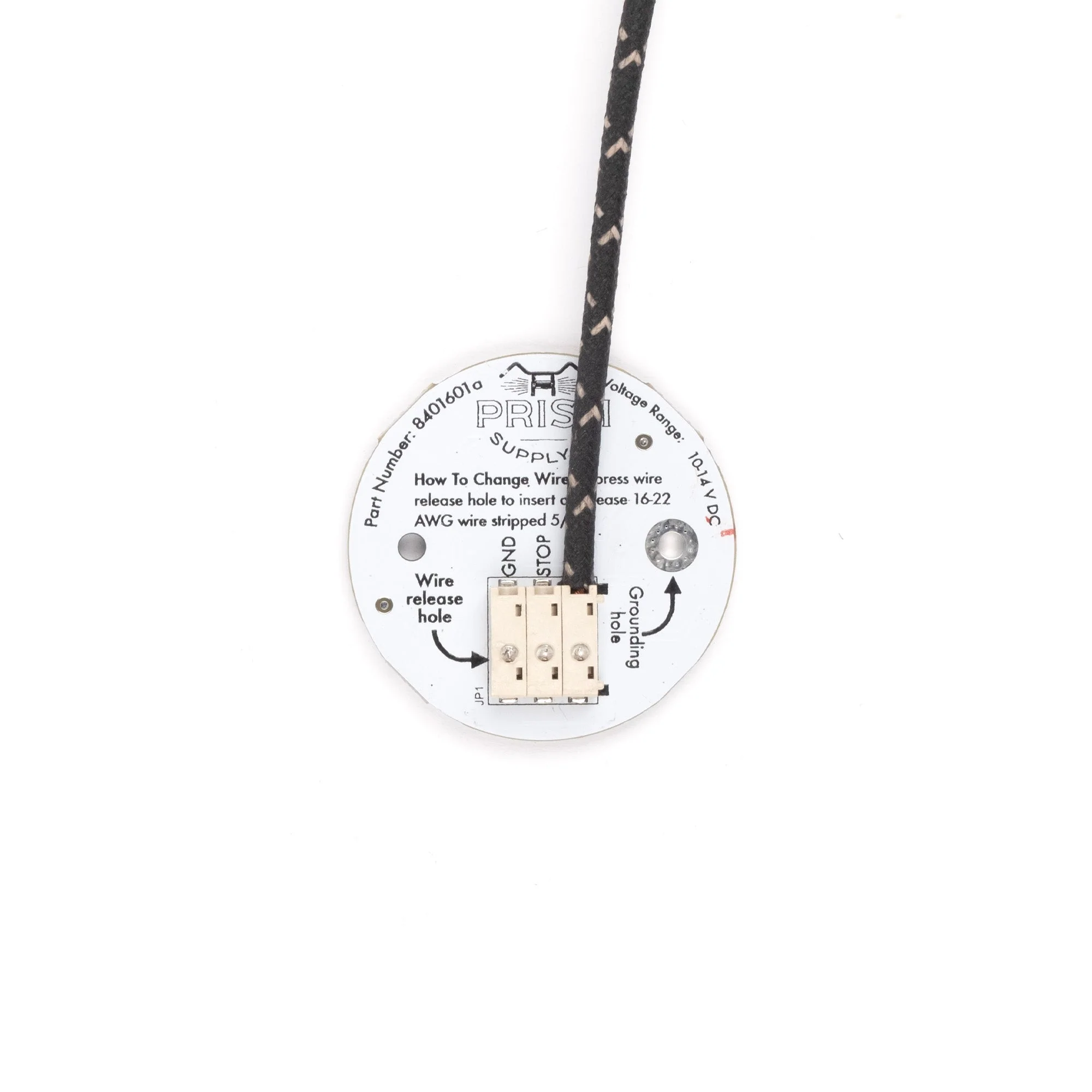

The second generation contains unique features on the LED board that allow you to easily swap wires out to run our Vintage Cloth Covered Wire. In addition, you can also ground through the housing which removes your ground wire all together making it even easier to run our Single Wire Tail Light Magic Box/ Single Wire Hydraulic Brake Switch. See more info here.

• Injection molded Prism Supply lens.
• The housing is made of aluminum and comes in either a polished or brushed finish.
• Wires exit through a grommet on the back of the housing.
• Comes with two stainless steel 1/4-28 bolts for mounting.

Any of the following mounting brackets will work with this light:

• PS-41 Tail light Weld-On Bracket w/ License Plate Mount

• PS-41 Tail light Weld-On Bracket

• Fender Mounting Bracket

• Factory Style Sissy Bar Light Mount

If you have any questions about fitment on your bike, we have put together 1:1 scaled drawings. You can print these on an 8.5"x11" sheet of paper and cut them out to use as templates for test fitment on your bike. Safari users may need to right click to download.

1:1 Drawing | PS-41 Tail Light
